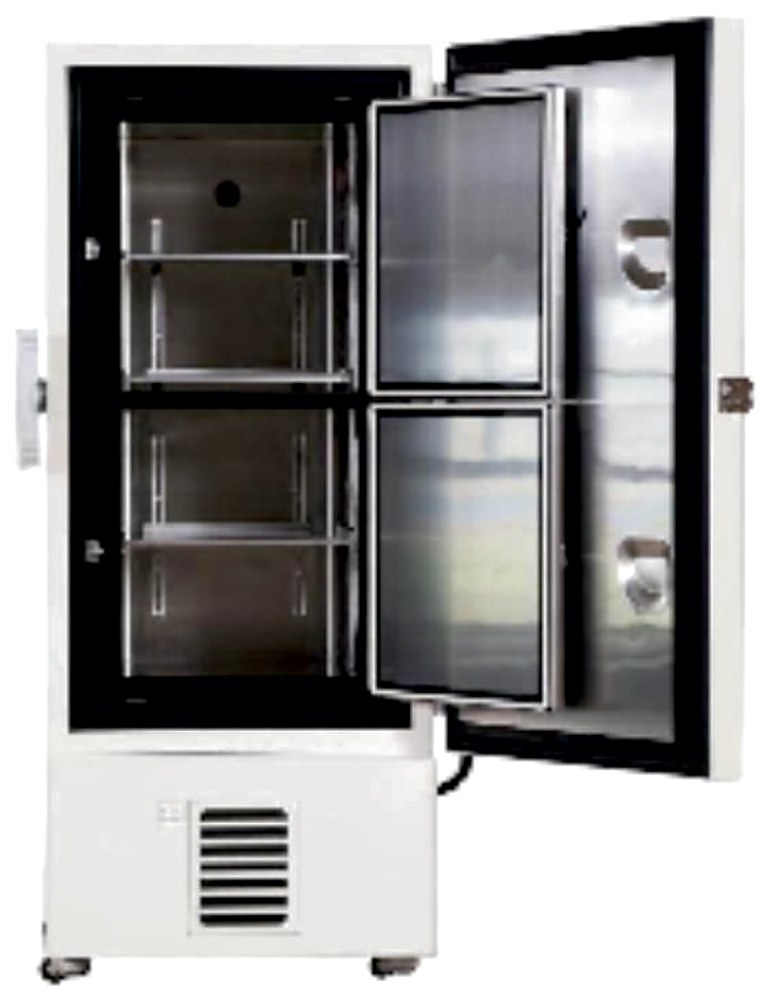

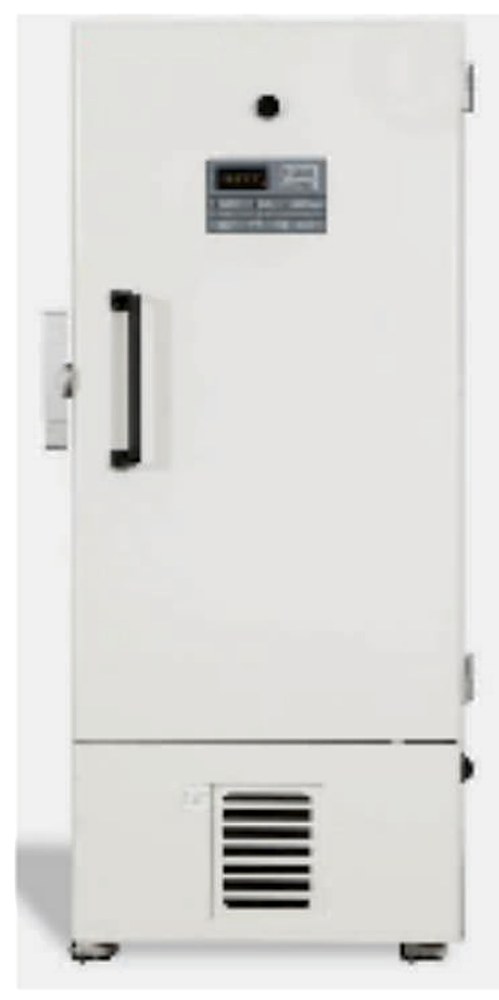

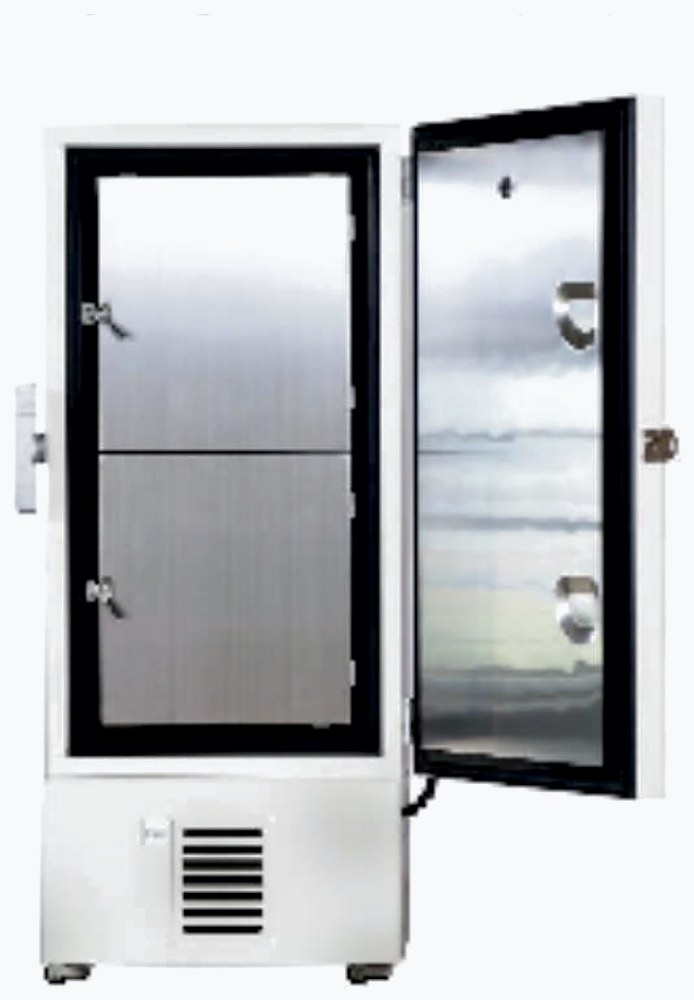

SVF-86V340E
Ultra Low Temperature Freezer are specially designed to store samples products.
Wide temperature range :10℃~32℃. ambient temperature can reach -86℃
Accurate Temperature control technology to make the temperature maintain -40℃~-86℃and accuracy 0.1 °C.
Independent research and development of mixed refrigerant can make device save energy 50%
Better uniformity, uniformity is increased 30%
The single level optimization of auto cascade refrigeration system design, less refrigeration component for easy maintenance.
304 stainless steel inner chamber for friendly using and easy cleaning
Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power
Visual and audible alarm system:High/low temperature, Power failure Abnormal voltage, Sensor error, Filter screen check, Low battery, Condenser clean, High ambient temperature, Door ajar alarm
Power failure protection: turn on delay of the cooling system when power failure, restart delay protection
Keyboard lock, password protection to avoid set parameter randomly
Special noise reduction design
4 casters with stopper for easy moving and fixation
Standard 25mm test hole for easy connecting to temperature monitoring systems
3 adjustable shelves for easy storing
Removable condenser dust gauze convenient for cleaning and maintenance
Removable inner door for user to defrost and clean
Standard USB port, USB port to read temperature and alarm conditions in recent 1 months
| Performance | |
|---|---|
| Temperature range | -40~-86℃ |
| Ambient temperature | +10~+32℃ |
| Controller | Microprocessor |
| Display | Digital Display |
| Refrigeration System | |
|---|---|
| Compressor / Brand | 1/SE COP |
| Refrigerant | Mixed |
| Cooling Type | Direct cooling |
| Defrost Type | Manual |
| Alarms | |
|---|---|
| High/Low Temperature | Y |
| Sensor error | Y |
| Power Failure | Y |
| Door Ajar | Y |
| High Ambient temp. | Y |
| Condenser clean | Y |
| Low battery | Y |
| Filter screen check | Y |
| Abnormal Voltage | Y |
| Electrical Data | |
|---|---|
| Power Supply ( V/Hz) | 220/50~60; 115/60 |
| Rated Power (W) | 810W |
| Electrical Current (A) | 5 |
| Power Consumption | 11.2 kwh/24h |
| Power failure backup system | 72H |
| Dimensions | |
|---|---|
| Capacity | 340 L |
| Interior size(W*D*H) | 488*607*1140 mm |
| Exterior size(W*D*H) | 875*980*1900 mm |
| Packing size(W*D*H) | 935*1070*2130 mm |
| N.T./G.t. (approx) | 222/283. 5kg |
| Loading Qty(20’/40’/40’H) | 12/24/24 |
| Accessories | |
|---|---|
| Chart Recorder | / |
| Caster | 4 |
| USB Port | Y |
| Inner Door/shelf | 2/3 |
| Test Hole | 1/25MM |
| Remote Alarm Port | Optional |
| Co2 back up system | Optional |
| Ln2 back up system | Optional |
| Cold storage box loading QTY | 19200 |
This products is widely used in hospitals and laboratories. Designed to store vaccines, blood plasma and many other biological materials. Installations can be found in research institutions and clinical sites in the life science, pharma, biotech, medical and electronics sectors.

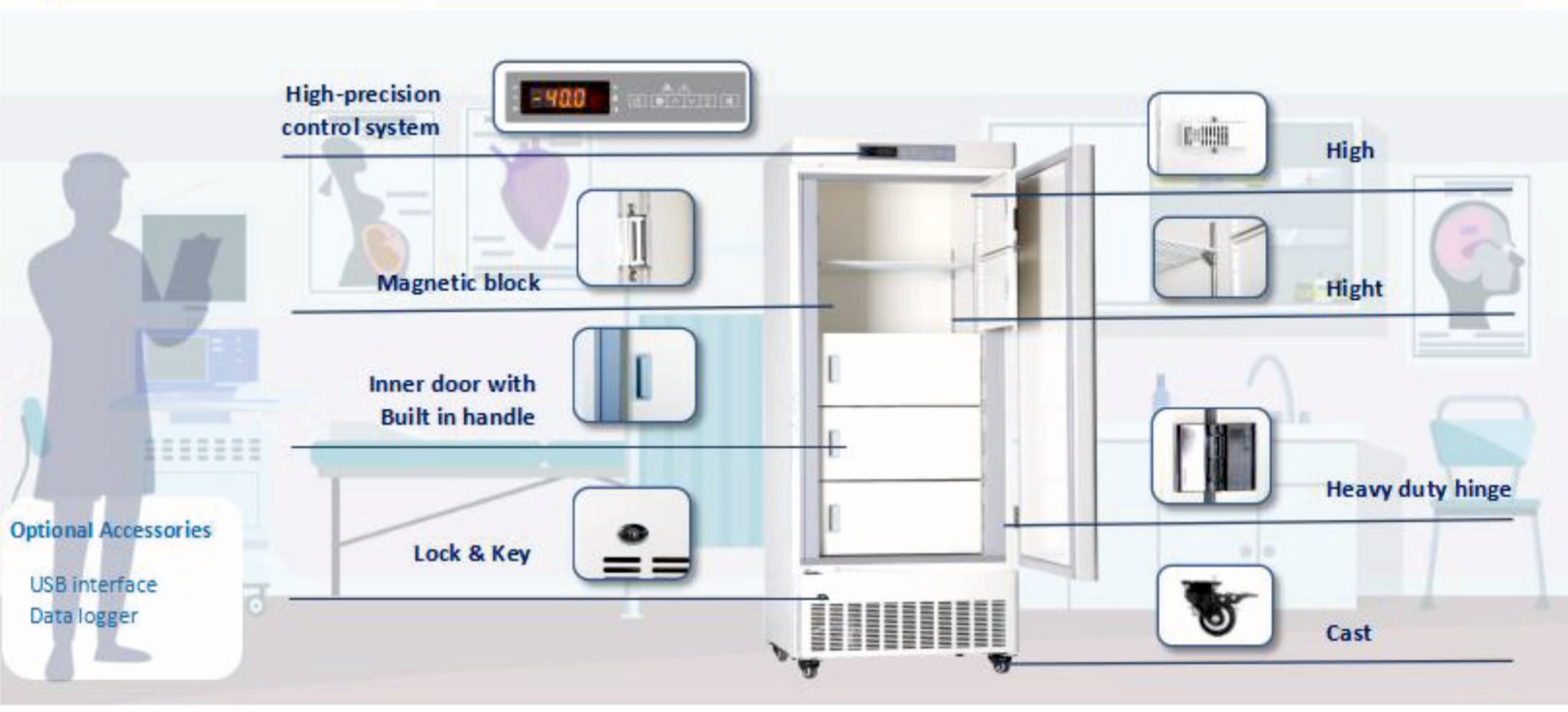

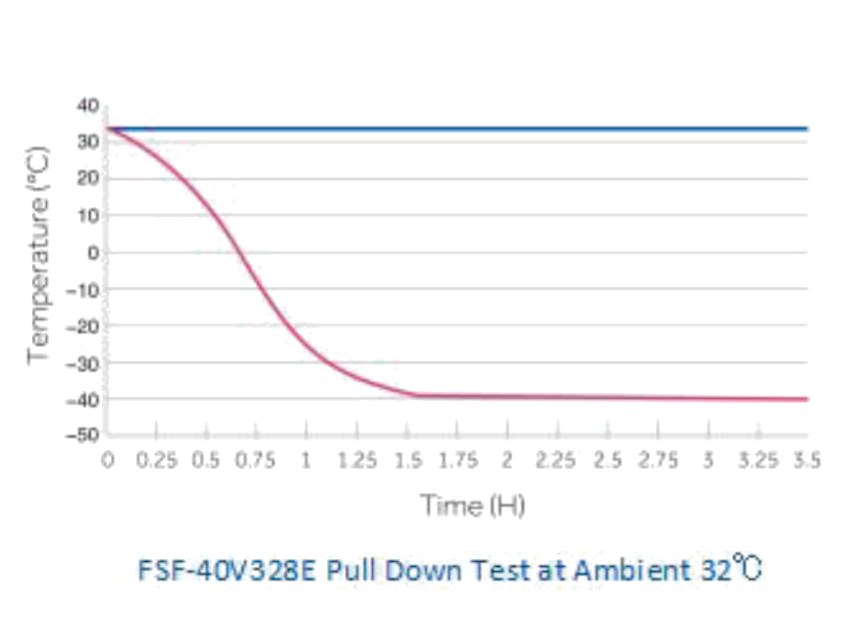

Fast pull downBetter cooling performance
High-quality steel materialsAntibacterial and corrosion resistant
Coil evaporatorBetter temperature uniformity
Precise temp. controlTemp. control accurate to 0.1℃
Inner-door design4 individual inner door
5 types of alarmAudible and visual alarms
Universal castor wheelsProven heavy-duty castors with brake
Variable spaceHeight adjustable shelves
Lockable doorsStandard locks with keys
Eco-friendlyCFC-free refrigerant and energy-saving

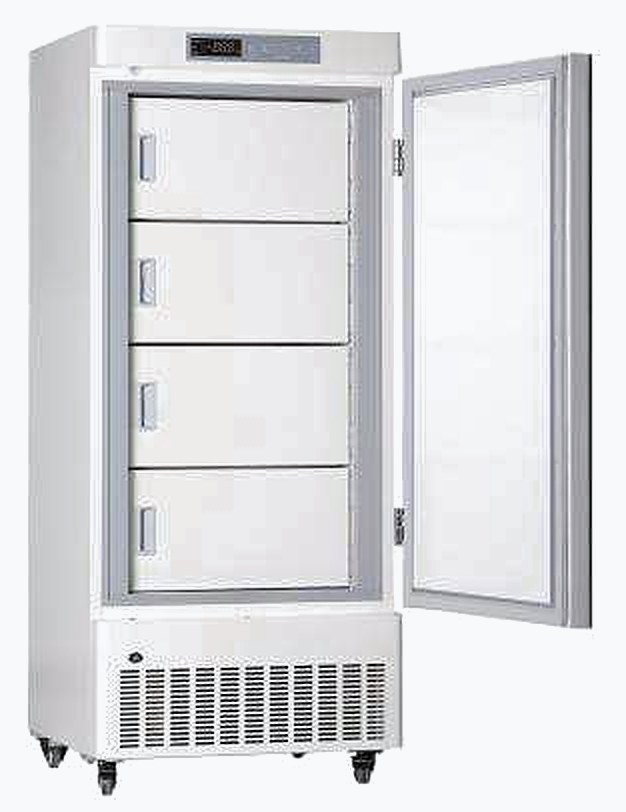

| Performance | |
|---|---|
| Cooling method | Direct Cooling |
| Defrost | Manual |
| Shelf/drawer | Shelves/5 |
| Temperature range | -20°C~-40°C |
| Ambient temperature | 10-32 |
| Noise (db | 48 |
| Refrigeration System | |
|---|---|
| Refrigerant | R290 |
| Temp. controller | Microprocessor |
| Sensor | NTC |
| Display | Digital display |
| External material | SPCC sprayed steel |
| Compressor QTY | 1 |
| Alarms | |
|---|---|
| High/low temperature | Y |
| Power failure | Y |
| Sensor error | Y |
| Controller failure | Y |
| Door ajar | Y |
| Power failure backup | 8 hours |
| Electrical Data | |
|---|---|
| Voltage frequency(V/Hz) | 220V 50Hz/60Hz |
| Power (W) | 300W |
| Current (A) | 1.6A |
| Power consumption | 4kWh/24h |
| Dimensions | |
|---|---|
| Package size (W*D*H)(mm) | 750*760*2030 |
| Capacity (L/cu.ft) | 328/11.6 |

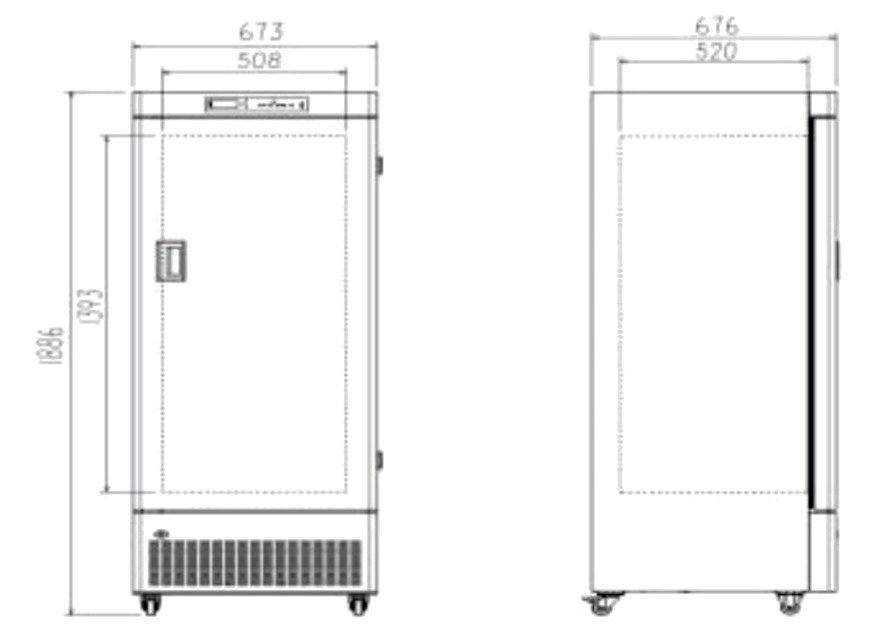

| Exterior size (W*D*H)(mm) | 690*680*1900 |
| Interior size(W*D*H)(mm) | 508*455 1393 |
| Other | |
|---|---|
| Inner door Qty | 5 |
| Remote alarm port | Optional |
| Access port QTY/Dia. | 1/25mm |
| Internal material | SPCC sprayed steel |

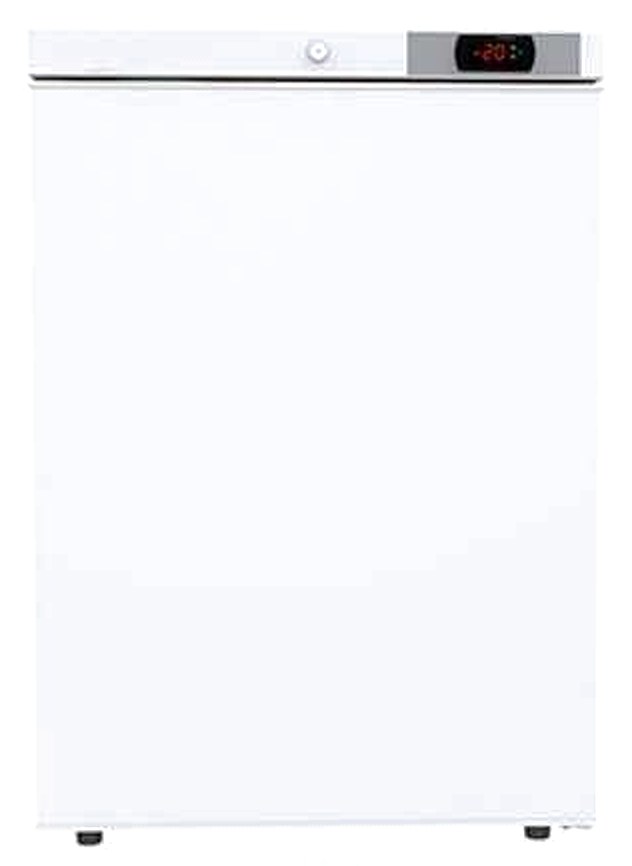

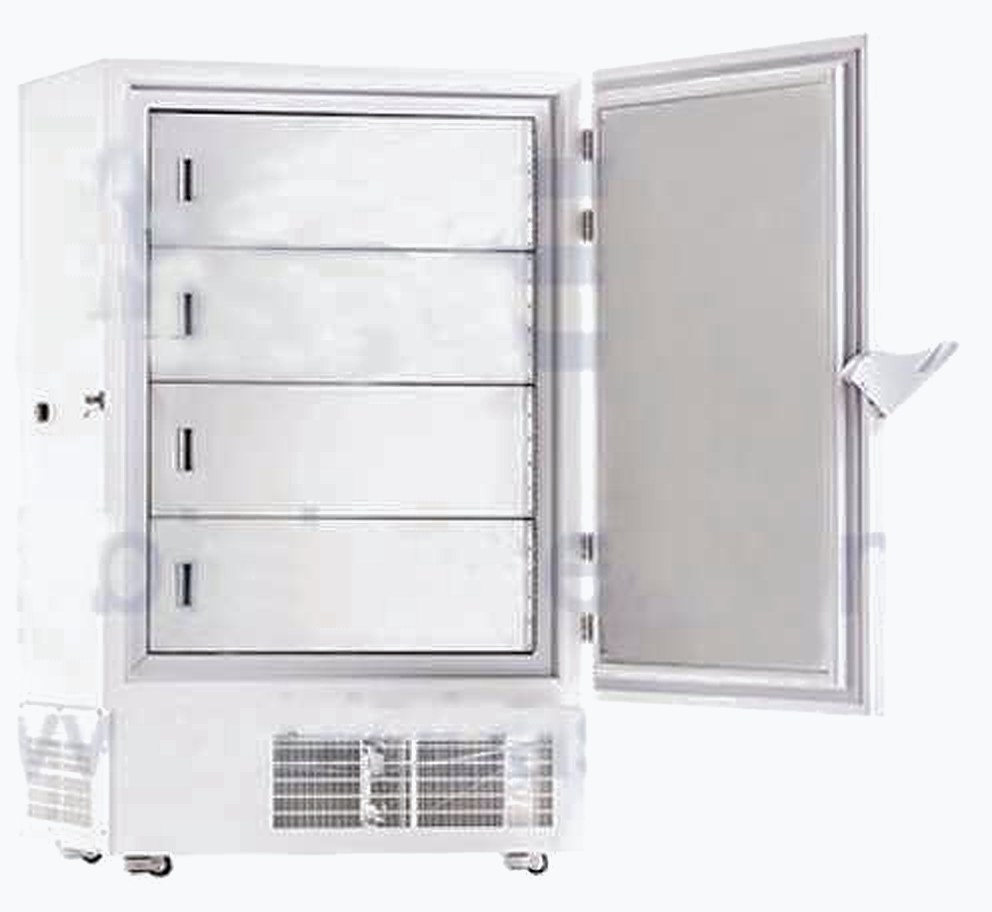

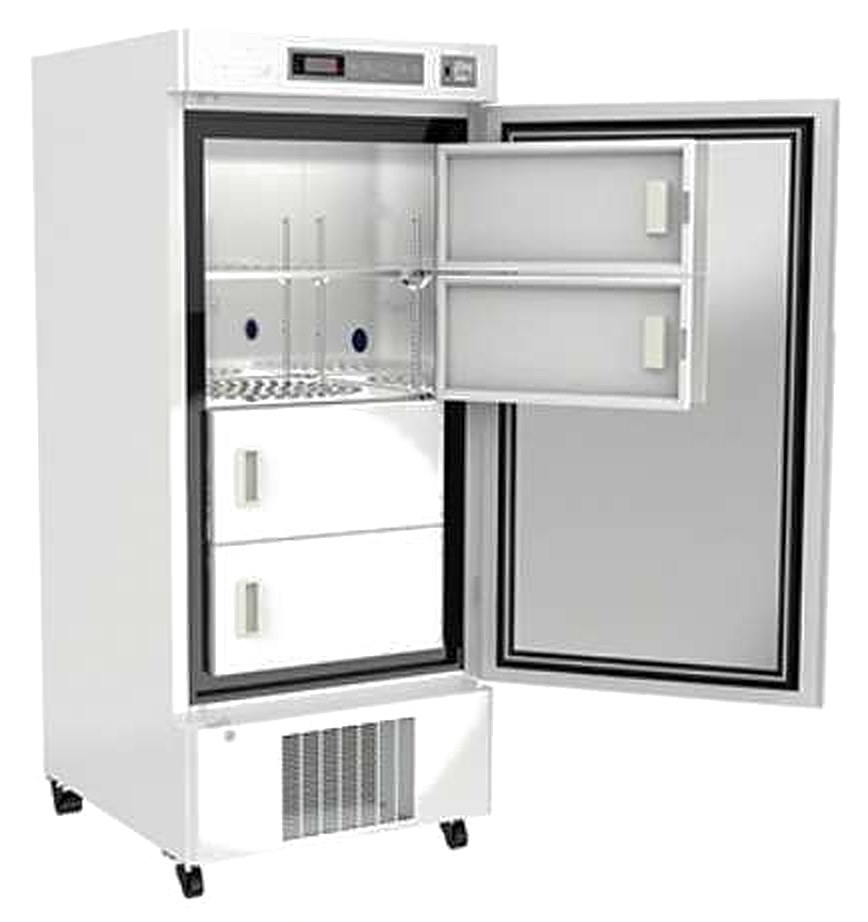

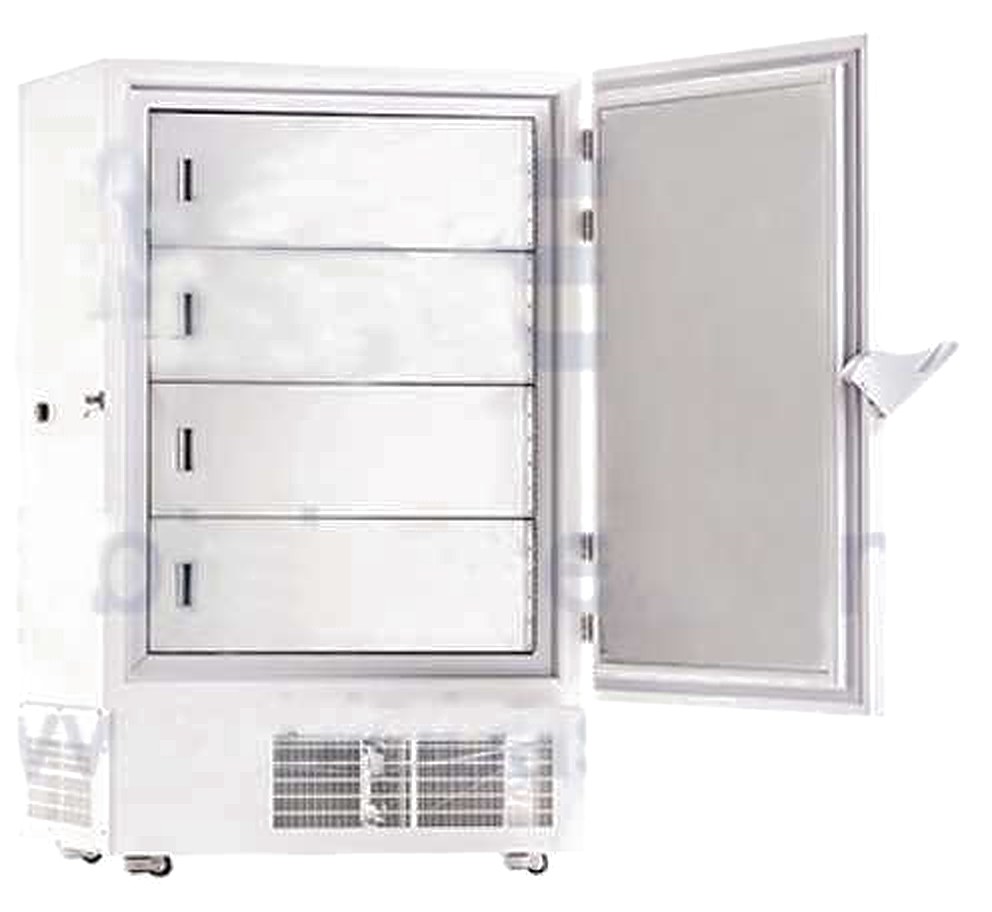

| Model | SVF-25V100 | SVF-25V270 | SVF-25V350 | SVF-25V936 |
|---|---|---|---|---|
| Capacity | 100L | 270L | 350L | 936L |
| Temperature Range | -10~-25℃ | |||
| Temperature Accuracy | 0.1°C | |||
| Temp. Uniformity | ≤= 3°C | 5°C | ||
| Temp. Stability | ≤= 3°C | 5°C | ||
| Recovery Time (Recover to - 22°C in an ambient temp. of 25°C) | ≤15min | |||
| Cooling Time (Cool down to - 25°C in an ambient temp. of 25°C) | ≤1.5h | 150min | ||
| Control System Display | Microprocessor control LED | |||
| Alarm | High and low temperature alarm, power failure alarm, thermostat fault alarm, door switch alarm | High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(8h) | High and low temperature alarm, sensor fault alarm, thermostat fault alarm, power off alarm, door opening alarm, ambient temperature alarm, condenser fault alarm, filter check alarm, abnormal voltage alarm, low battery power alarm | |
| Refrigeration Type | Direct refrigeration | |||
| Refrigerant | R600a/32g | R290/55g | R290/75g | R404A/320g |
| Compressor | International famous brand compressor /1 | Imported brand SECOP compressor/2 | ||
| Condenser & Evaporator | Side-panel type Bundy tube condenser; wire-on-tube Bundy tube evaporator | Wire-on-tube Bundy tube condenser Built-in coil type copper tube evaporator | Finned copper tube condenser, built-in coil type copper tube evaporator | |
| Defrost Construction | Manual defrost Polyurethane cyclopentane foam | |||
| Internal Material | HIPS | 304 stainless steel | ||
| External Material | Precoated steel plate | Sprayed steel plate | ||
| Door | Outer door: cyclopentane integral foam outer door*1 Interior door: / | Outer door: cyclopentane integral foam outer door*1 Interior door: optional | Outer door: sprayed steel plate outer door*1 Interior door: 304 stainless steel door*4 | |
| Consumption | 100W | 332W | 312W | 1000W |
| Power Supply | AC 220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | AC 220V, 50Hz (Standard); 220V, 60Hz; 110V, 50/60Hz(Optional) | ||
| Casters | No(Optional) | Yes | ||
| Shelf | 3(Drawer) | 3 | 4 | 3 |
| Standard Accessory | Test hole | Test hole, USB interface | Test hole | |
| Optional Accessory | Temperature recorder, RS485, printer, USB interface, caster, power failure alarm | Temperature recorder, RS485, printer, inner door | Temperature recorder, liquid nitrogen backup system, remote alarm function interface, USB interface | |
| Internal Size (W*D*H | 410*440*630mm | 520*567*1013mm | 520*567*1266mm | 1000*700*1335mm |
| External Size (W*D*H) | 600*620*870mm | 690*744*1631mm | 690*744*1885mm | 1304*1000*2017mm |
| Package Size (W*D*H) | 630*645*905mm | 810*860*1820mm | 840*860*2050mm | 1355*1000*1980mm |
| Net Weight | 37.5kg | 115kg | 123kg | 378kg |
| Gross Weight | 39.5kg | 132kg | 145kg | 413kg |
