Laboratory bottle washing machine is a kind of automatic equipment specially used for cleaning laboratory utensils, which is widely used in chemical industry, food testing, scientific research and other fields. Through high temperature, high pressure water flow and special cleaning agent, it efficiently removes residues, ensures the cleanliness of utensils meets the experimental requirements, replaces the traditional manual cleaning, improves efficiency and reduces the risk of cross contamination.
Adopt PLC microcomputer control technology. Standard printer and 7-inch color LCD touch screen.
Complete protection functions: The door cannot be opened during operation to ensure safe use; dual temperature protection of water temperature and air temperature; power failure protection function; water seal design of drainage pipeline to prevent reverse flow of sewage; installed with leak-proof detection, if liquid leakage is detected, the program is cancelled, the inlet valve is closed, and the drain pump is started.
Standard procedure: Meet the general contaminant blood cleaning.
Quick cleaning program: Meet the cleaning of lightly polluted utensils.
Customized cleaning program: According to different cleaning needs, users can customize the combined cleaning program.
Drying program: Equipped with a high-performance drying system, which can quickly complete the drying and cleaning of various instruments.
Manual test procedure: Self-check the operation status of each component of the equipment.

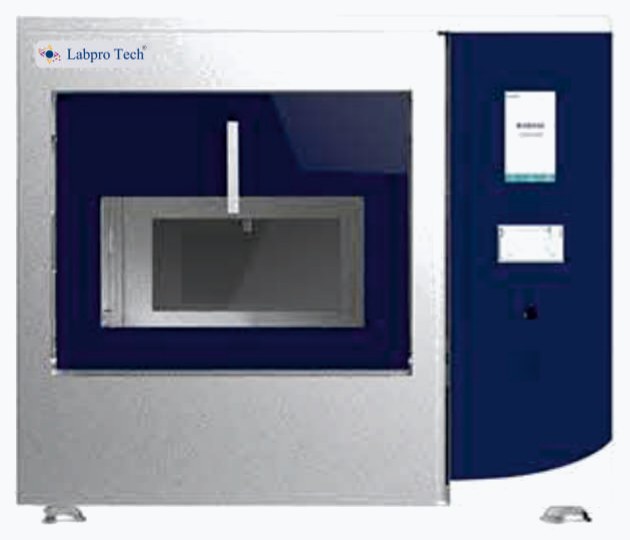

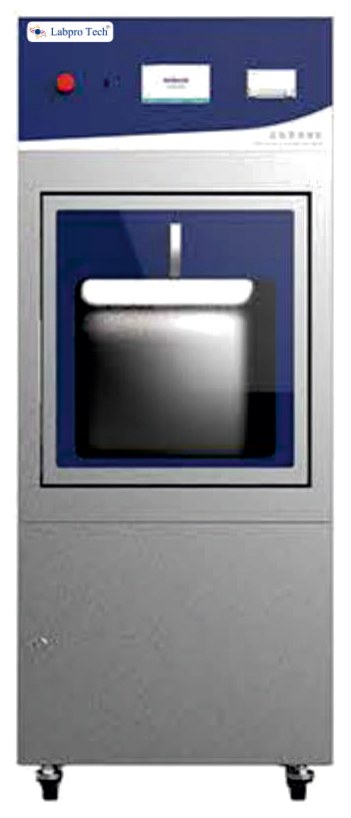

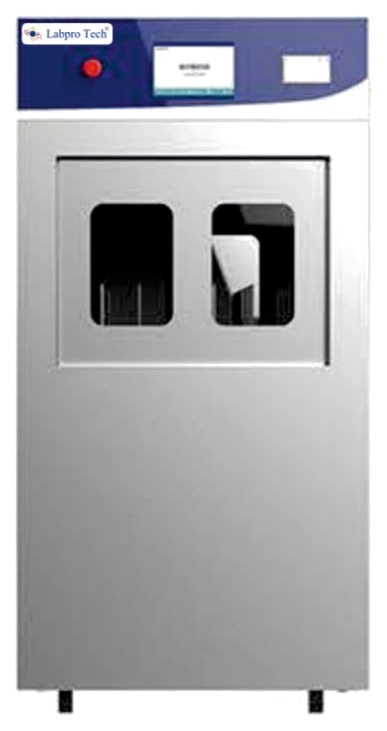

| Model | SVX-CQS-120 | SVX-CQZ-120 | SVX-CQS-220 | SVX-CQS-320 |
|---|---|---|---|---|
| Cleaning | ||||
| Capacity | 120L | 120L | 220L | 320L |
| Washer Load Level | 1 | 1 | 2 | 3 |
| Water Wash Power | 5KW | 5KW | 5KW | 5KW |
| Water Heater Power | 3KW | 3KW | 4KW | 4KW |
| MAX. Power | 6KW | 6KW | 9KW | 9KW |
| Water Consumption/Step | 15L | 15L | 20L | 20L |
| Tank Internal Temperature | 0~95℃ | |||
| Water Supply Pressure | Tap water: 0.3-0.8Mpa pure water: 0~1Mpa | |||
| Peristaltic Pump for Cleaning Agent | 2 | |||
| Cleaning Agent Level Sensor | YES | |||
| Washing Pump | Sweden 430L/min | Sweden 430L/min | Sweden 1000L/min | Sweden 1000L/min |
| Standard Cleaning Racks | SVXIR36, 1pc | |||
| Drying | ||||
| Drying Function | YES | |||
| Steam Condenser | YES | |||
| Dry Power | 3KW | 3KW | 4KW | 4KW |
| Control System and Traceability | ||||
| Control System | 7" color LCD touch screen display, microprocessor | |||
| Cleaning Program | 12 pre-set programs+4 PLC free programming | |||
| Password Protection | YES | |||
| Safety Emergency Button | YES | |||
| USB port | YES | |||
| Integrated printer | YES | |||
| Online Monitor Performance of Washing | NO | |||
| Dimensions & Weight | ||||
| Chamber Dimension (W*D*H) | 600*630*460mm | 600*630*460mm | 600*610*750mm | 600*610*920mm |
| Exterior Dimension (W*D*H) | 980*740*870mm | 890*800*1630mm | 700*800*1850mm | 700*800*2000mm |
| Package Dimension (W*D*H) | 1150*940*1060mm | 1100*970*1900mm | 850*950*2250mm | 850*950*2250mm |
| Net Weight(Host only) | 190kg | 260kg | 290kg | 310kg |
| Gross Weight(Host with rack) | 220kg | 290kg | 330kg | 350kg |
| Others | ||||
| Door | Double-layered glass door, 304 stainless steel | |||
| Safety Door Lock | YES | |||
| Built-in RO Water Pump | YES | |||
| Noise | <50dB | |||
| Power Supply | AC220V, 50Hz(Standard) AC220V, 60HZ; 110V, 50/60HZ(Optional | |||
