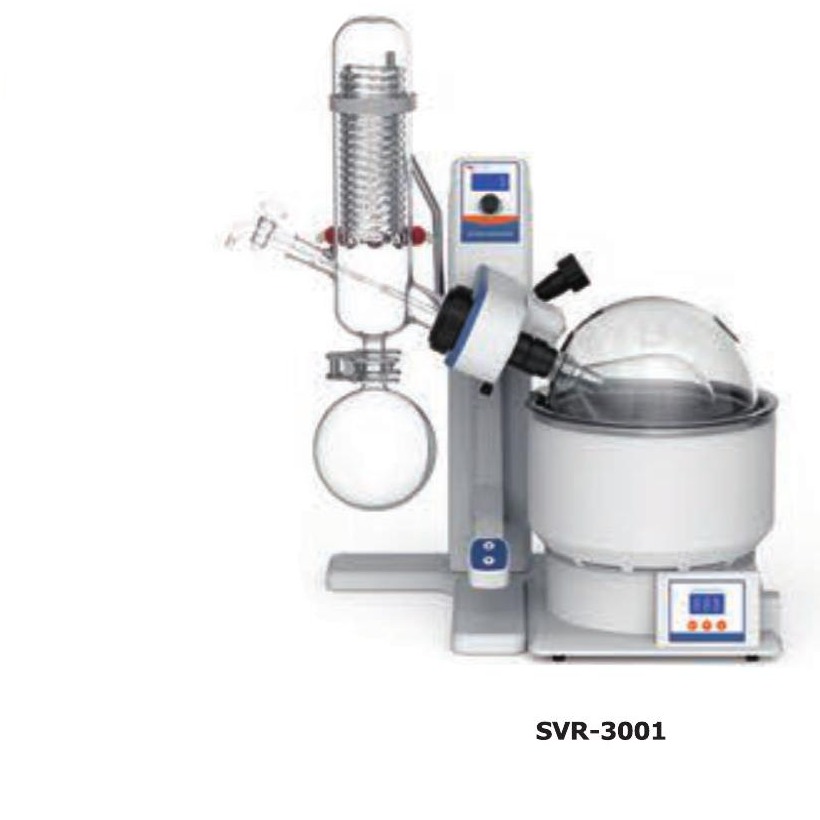

| Item | SV-3001 |
|---|---|
| Dimensions (with glass) (mm) | 620Wx400Dx700 (850) H |
| Minimum Installation Space (mm) | 720Wx500Dx900H |
| Weight (with glass) (kg) | 13.5 |
| Power Supply | 110V~, 60Hz or 220-240V~, 50/60Hz |
| Overall Power (W) | 1390 |
| Protection Level | IP 20 |
| Pollution Level | 2 |
| Rotation Speed (rpm) | 10~180 |
| Bath Temperature Control Range (℃) | Room Temperature +5~95 |
| Nominal Adjustment Accuracy (℃) | ±1.5 |
| Bath Liquid | Deionized Water |
| Vacuum Leakage (kPa/min) | ≤ 0.33 |
| Certification | CE |
| Rotation Control | Electrical Control |
| Heating Rated Power (kW) | 1.3 |
| Bath Temperature Sensor | PT-100, 2 wires |
| For Indoor Use Only | √ |
| Optimum Ambient Temperature (℃) | 5~35 |
| Ambient Relative Humidity (%) | ≤70 |
| Water Bath Size | SUS304, Φ254mmx130mm |
| Glass | Glass 3.3 Borosilicate glass |

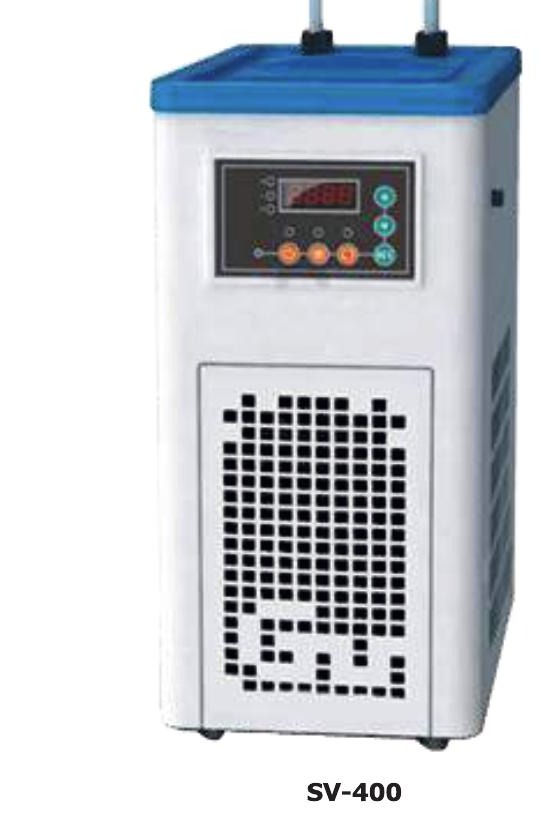

This compact chiller is particularly designed for lab scale Rotary Evaporator
It is reasonably structured with small foot-print, which can be placed on bench or on floor
Circulating joint nozzle can be rotated 360° which makes it easy to connect with corollary equipment
All parts contacting refrigerant is made of stainless steel 304 and macromolecule anti-corrosive material
World famous brand compressor ensures high reliability and long life-span

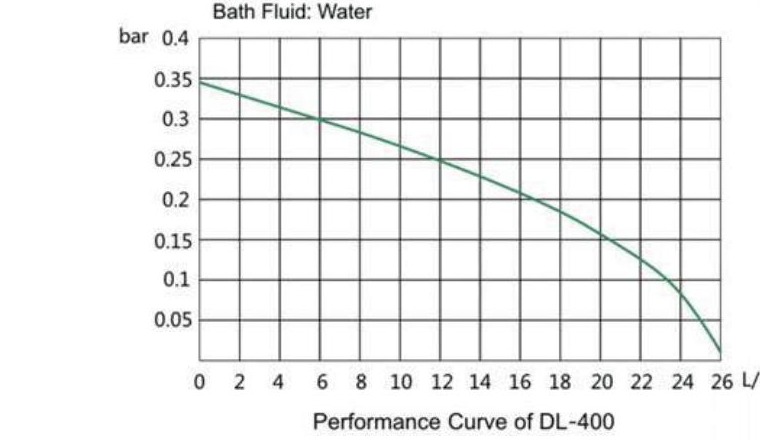

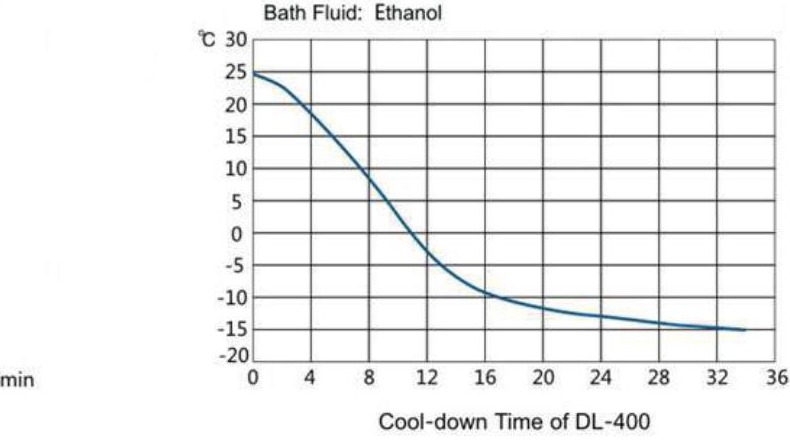

| Model | Working Temperature Range* | Power Supply | Overall Power (W) | Cooling Capacity (W) | Refrigerant | Bath Fluid Filling Volume (L) | Material of Bath Fluid Tank | Circulating Pump Flow Rate | Pressure (bar) | Dimension (mm) | Net Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SV-400 | -15~25℃ | 220-240V~,50Hz | 500 | 400 | R134a3 | 3 | Stainless Steel 304 | 17L/Min | 0.2 | 245W*430D*550H | 26 |
*Working Temperature≤RT-5℃

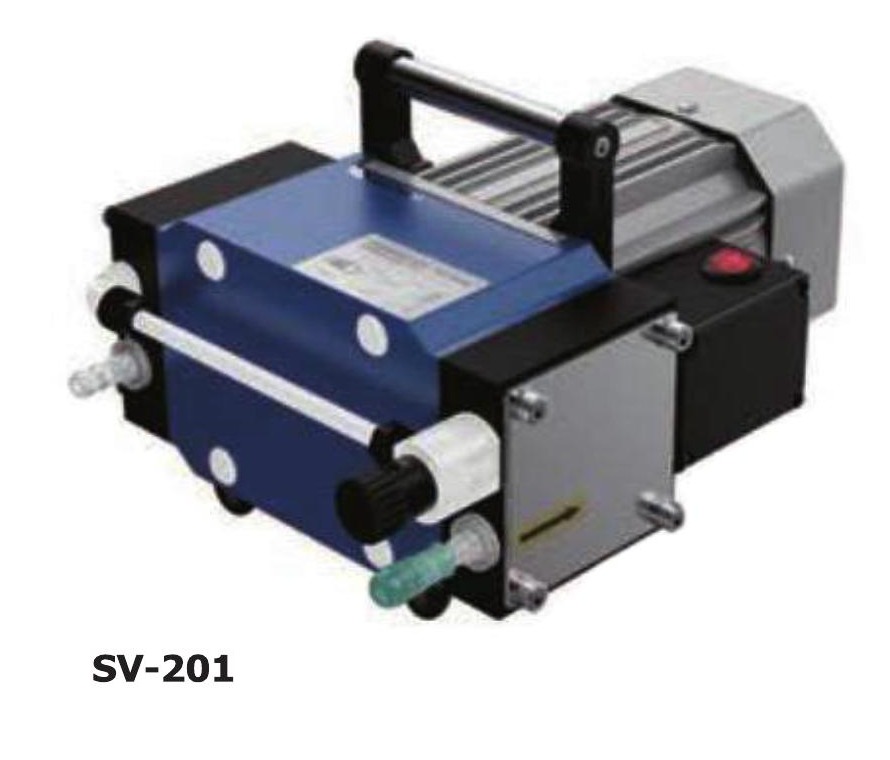

SV series diaphragm vacuum pump provides negative pressure conditions for processes of evaporation, distillation, crystallization, drying, sublimation, reduced pressure filtration. It can be used to extract a variety of highly toxic, flammable and explosive, strong acid, and alkali samples
Use as a substitute for water circulating vacuum pump and rotary vane vacuum pump
No need for any working medium. No friction between working parts
Vacuum level can be adjusted according to experiment requirements
All parts that contact gases are made of PTFE + FV rubber with chemical resistance
Valve plate uses imported materials
Motor is supplied by trusted manufacturer
Designed to ensure smooth running transmission
Small and lightweight for easy storage and moving
| Model | Motor Power (W) | Power Supply | Inlet Diameter (mm) | Ultimate Vacuum (Mpa)/Extreme pressure (mbar) | Pumping Speed (L/min) | Dimensions (mm) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|
| SV-201 | 180 | 220-240V-50Hz | φ10 × φ6 | 0.095/50 | 25 | 310W×225Dx168H | 10 |
