It is used for sintering, melting and analyzing metal, nonmetal and other compound materials in laboratories of universities, research institutes and industrial and mining enterprises

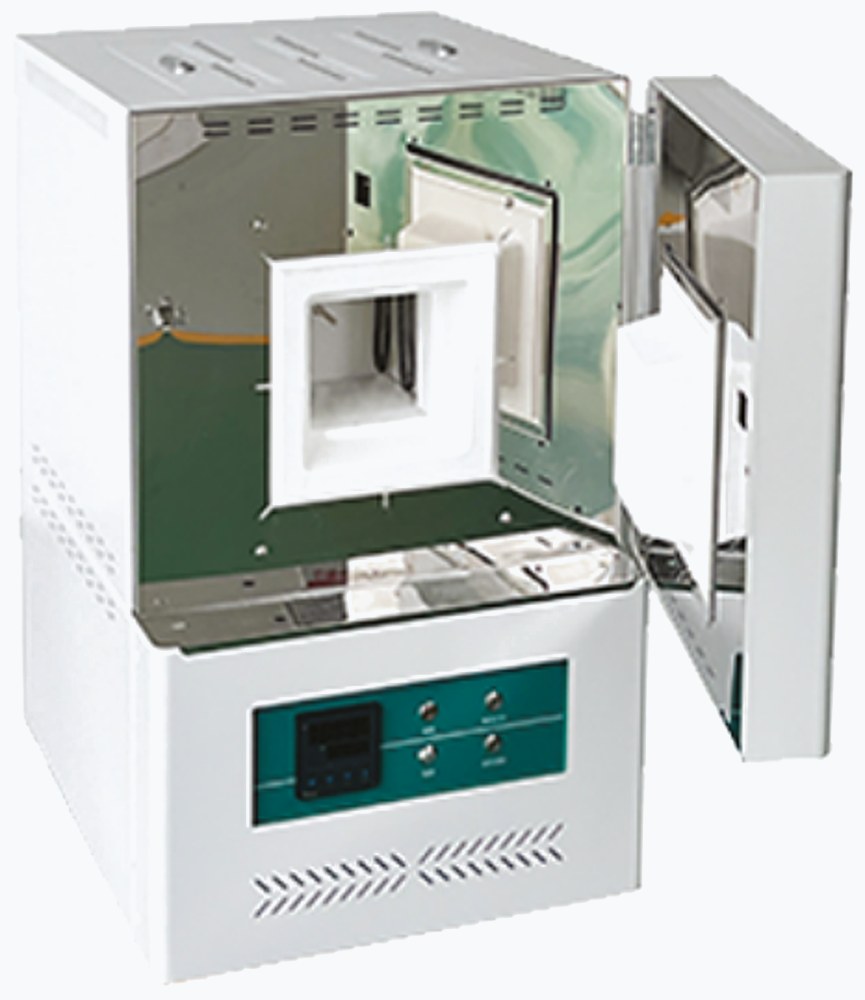

Mirror stainless steel furnace mouth, long-term use will not change color
Vacuum-forming polycrystalline mullite fiber furnace, high efficiency insulation
Double shell, the air sleeve heat insulation, and double air guiding passage
High-purity silicon-molybdenum rod heating, and with standard exhaust chimney
High precision program controller, with imported sensor and imported voltage regulating module
With leakage protection, thermocouple failure, door opening electrical outage, over-temperature protection and sound-light alarm safety device
Lockable handle, quick detachable structure,easy to maintenance and repair
Standard with insulated gloves, crucible tongs and Alumina load bearing board
| Model | ||||||
|---|---|---|---|---|---|---|
| 30 Segment Domestic Controller | SV4-2-16 | SV4-4-16 | SV4-8-16 | SV4-12-16 | SV4-20-16 | SV4-36-16 |
| 64 Segment Import Controller (Model With P) | SV4-2-16P | SV4-4-16P | SV4-8-16P | SV4-12-16P | SV4-20-16P | SV4-36-16P |
| 30 Segment 7.0 Inch Touch Screen Controller (Model With PL) | SV4-2-16PL | SV4-4-16PL | SV4-8-16PL | SV4-12-16PL | SV4-20-16PL | SV4-36-16PL |
| Function | ||||||
| Temp. Range | Nax 1600℃ (Long-TERM Max Continuous Service Temperature 1500℃) | |||||
| Temp. Accuracy | ±1℃ | |||||
| Temp. Resolution Ratio | 1℃ | |||||
| Temp. RISING Time To Max Temp | <40Min | |||||
| Structure | ||||||
| Furance Body | Polycrystalline Multite Fiber | |||||
| Outer Shell | Cold rolling steel with electrostatic Spraying exterior | |||||
| Chamber Size | 150*90*150 | 150*150*150 | 300*150*150 | 300*200*200 | 300*260*260 | 300*400*300 |
| Exhaust Hole | Diφ22, Diφ18 | |||||
| Heater | Silicon Molybdenum Rod | |||||
| Heating Power | 3KW | 5.5KW | 9KW | 10KW | 12KW | 15KW |
| Controller | ||||||
| Temp. Control | No Letter Model : LED Programmed Controller; P Type: LCD Imported Programmed Controller; PL Type: 7.0-inch touch screen program controller, with curve viewing and USB data storage functions. | |||||
| Temp. Control Mode | Intelligent Microcomputer PID Control | |||||
| Display Mode | No Letter Model : 4 keys Settings P Type : 5 keys Settings PL Type : Touch Type Operation | |||||
| Timer | No Letter Model : 0-9999min P Type : 0-99hours 59min PL Type : 0-9999min | |||||
| Operation Function | Constant Value Operation Or Program Operation | |||||
| Sensor | S-type Thermocouple | |||||
| Additional Function | Heating Start Stop Button, Sensor Fault Alarm, Temperature Overshoot Self Setting, Temperature Correction | |||||
| Safety Device | Over temperature Alarm, Leakage Protection, Door Opening Heating | |||||
| Specification | ||||||
| Exterior Size (W*L*H) (mm) | 600*755*1100 | 600*815*1100 | 750*815*1100 | 750*865*1150 | 750*925*1210 | 750*1065*1250 |
| Packing Size (W*L*H) (mm) | 760*925*1310 | 760*985*1310 | 960*985*1310 | 910*1045*1360 | 910*1105*1420 | 910*1265*1460 |
| Volume | 2L | 4L | 8L | 12L | 20L | 36L |
| Curent Rating (50/60HZ) | AC220V 50Hz | AC380V 50Hz | ||||
| NW/GW (kg) | 70/90 | 80/100 | 110/130 | 150/170 | 175/195 | 270/320 |
| Optional Type | 485 Communication, U Disk Data Storage | |||||
